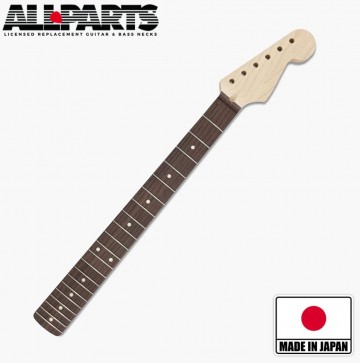

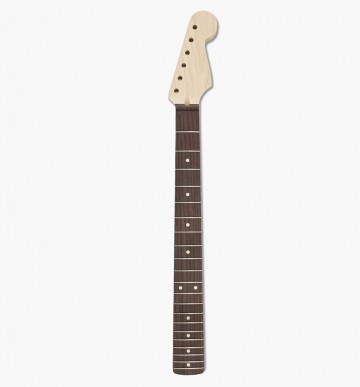

Allparts Strat neck, maple, rosewood fingerboard, 21 tall frets, 10" radius
Allparts Strat neck, maple, rosewood fingerboard, 21 tall frets, 10" radius
- licensed by Fender©
- nut not included
- 10" radius

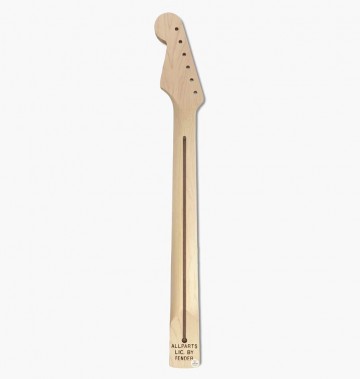

- necks have skunk stripe
- rosewood fingerboards are 'slab boards'

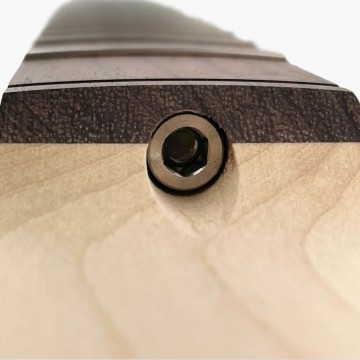

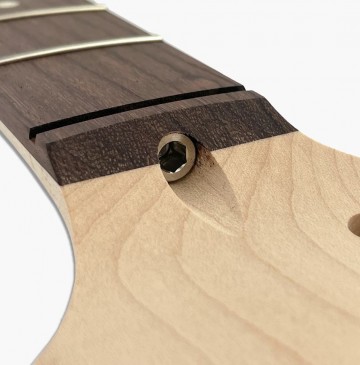

- neck adjustment at headstock
- necks are C-shaped and have 21 tall frets (width 2.00 mm – height 1.30 mm)
- peghead ø 8.60 mm – stringpost diameter 6.35 mm (1/4")
- scale length 25.50" (648 mm)
- necks are sanded and ready to spray
-------------------------------------------------------------------------------
Specifications
- Scale Length: 25.5
- Neck Profile Shape: C
- Frets: Tall (0.079" x 0.055")
- Wood: Maple with rosewood fretboard
- Finish: None/Unfinished
- Fretboard Radius: 10"
- Inlays: White fretboard and side marker dots
- Nut Width: 1-5/8"
- Heel Width: 2-3/16"
- Heel Shape: Round
- Tuning Peg Holes: Vintage 2-step hole
- 0.34" (8.5mm) bushing-hole diameter
- 0.25" (6.5mm) post-hole diameter
- Truss Rod Adjustment Location: Headstock
- Neck Thickness:
- 0.85" at first fret
- 0.95" at twelfth fret
Important Notes
- Wood grain varies from neck to neck. Your neck may differ slightly from what is pictured.
- All necks have a limited lifetime warranty against defects in materials and workmanship.
- All necks may require fret leveling and polish. This is normal and not a defect.
- To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
- This neck is licensed to Allparts Music Corporation by Fender ® Musical Instruments under a quality control trademark license. Allparts Music Corporation is not affiliated with Fender ® and no Fender ® warranty applies.
